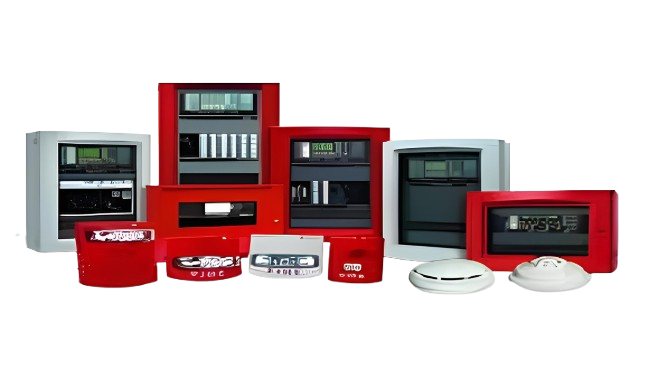

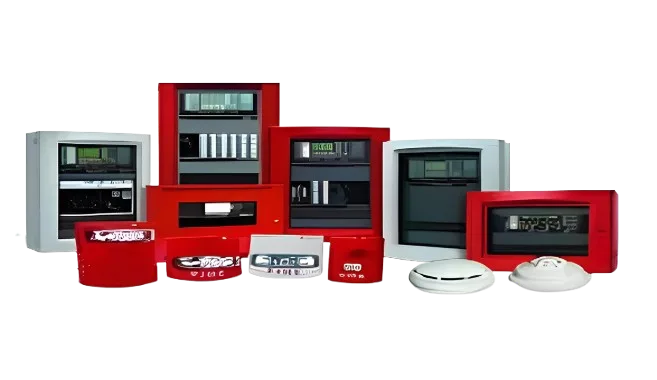

Fire Detection

CONVENTIONAL

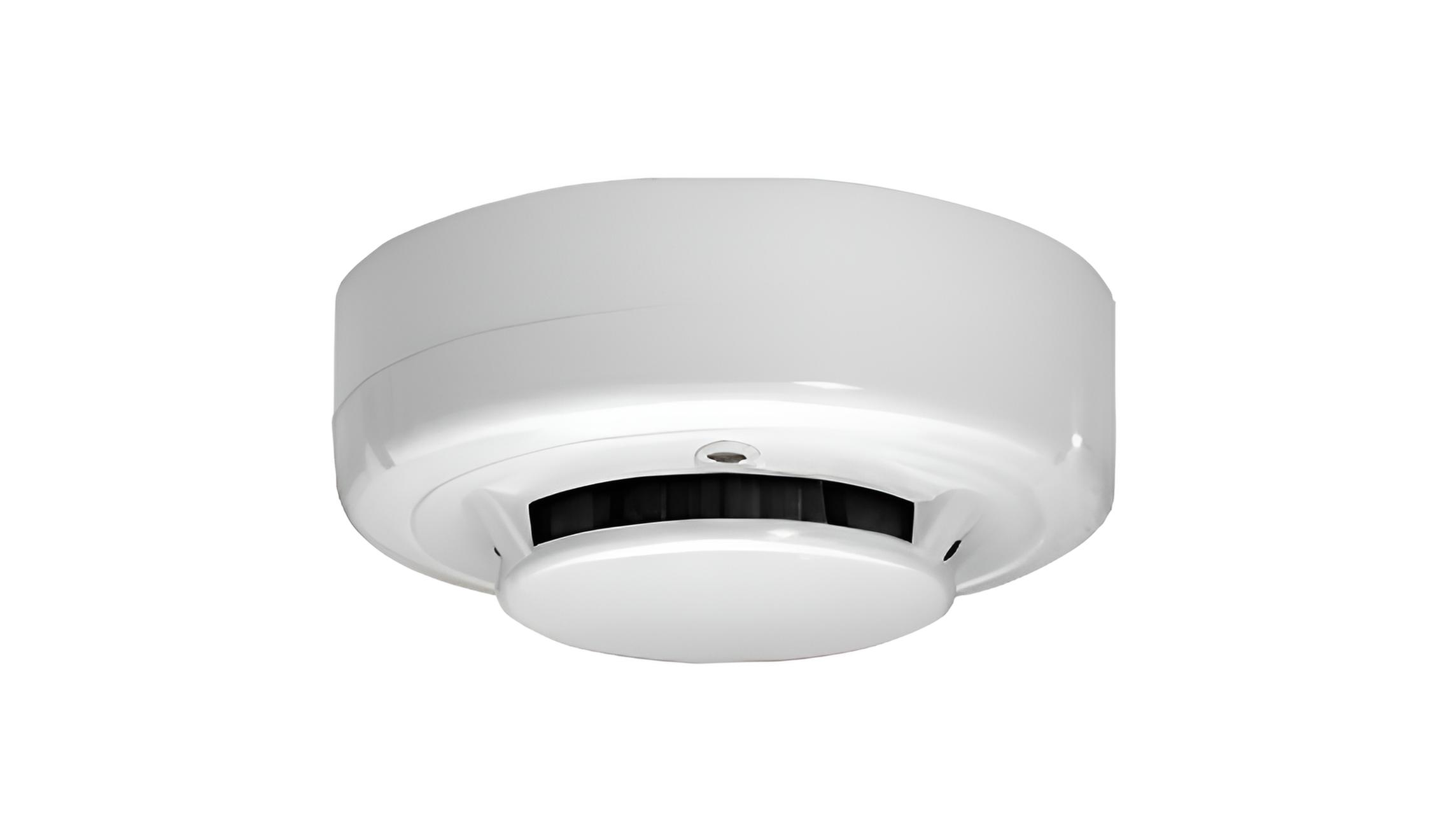

CONVENTIONAL PHOTOELECTRIC SMOKE DETECTOR

  • Low profile design
  • Low current draw
  • Wide operating voltage 8 to 30V
  • Bi-colour LED detector status indicator
  • Programmable sensitivity
  • Addressable feature
  • Advanced maintenance features via remote hand-held test unit
  • Tested & approved to EN54 part 7 (2000)

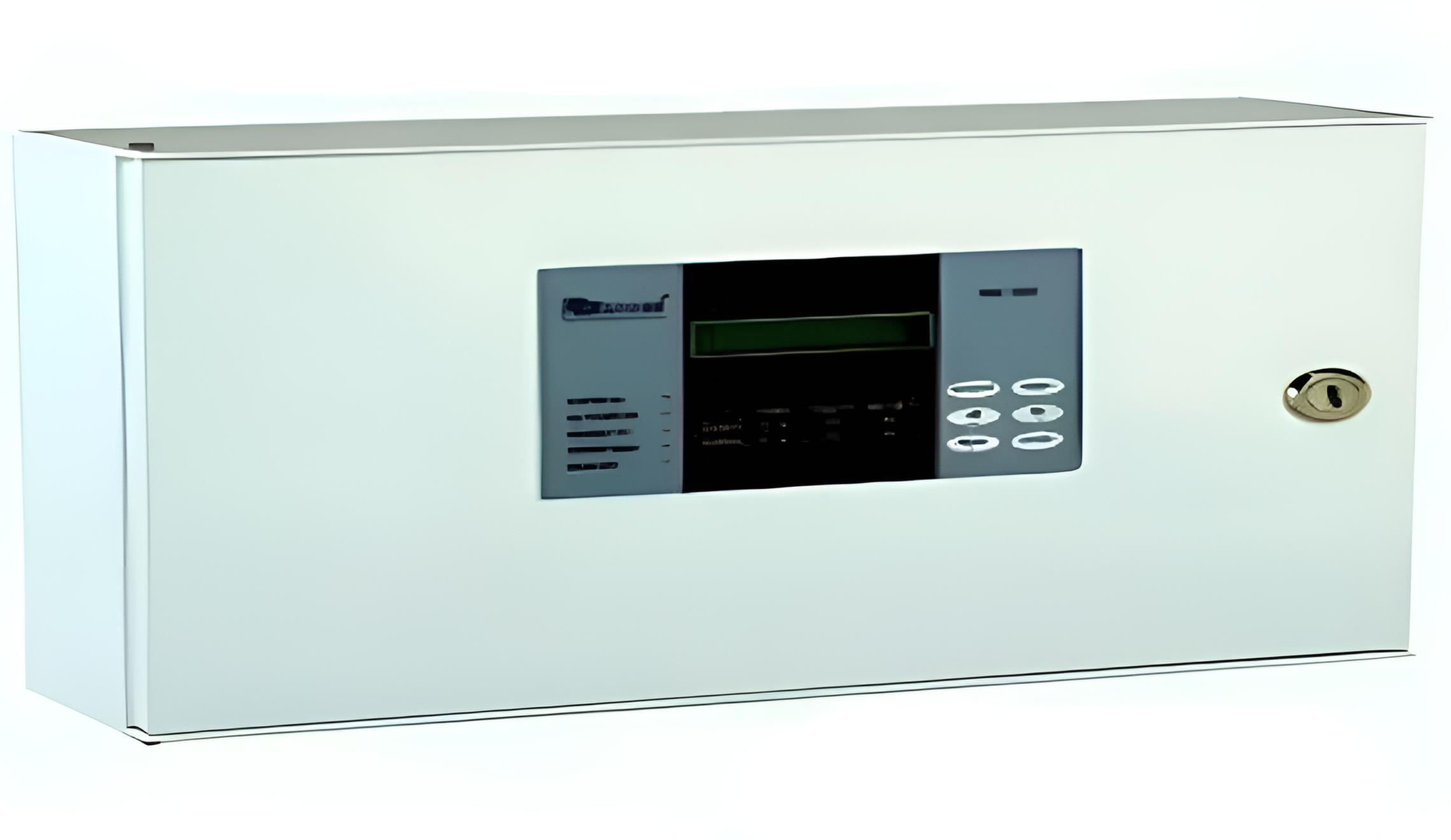

CONVENTIONAL CONTROL PANEL

  • Confirms IS 2189 norms.
  • Rugged CRCA sheet with powder coated finish.
  • Modular Construction.
  • Operates on 230 VAC, 24 VDC.

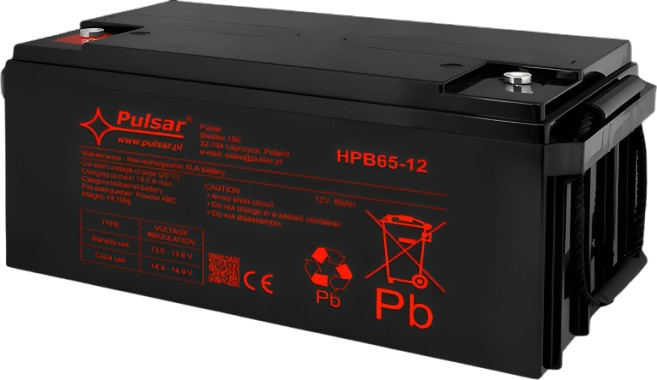

  • Standby Battery backup with build-in charging.
  • Fire / Fault status in unambiguous coloured LED.
  • System On, Main, Standby ON status indication.
  • Low Battery visual warning with audible buzzer tone.
  • Earth fault indication with audible buzzer tone.
  • RS485 for repeater/slave communication (Uses shielded or twisted wire (CAT5E or CAT6)).
  • Relay Outputs for actuators.
  • Lamp test facility.
  • One man walk test facility.
  • Zone Isolation facility with loop voltage cut off.
  • RS 232 Communication for PC Software (Optional)
  • Compatible to all types of conventional detectors.

ANALOGUE ADDRESSABLE

Analogue panels

Our range of panels offer a high-specification, analogue fire detection panel is available in a 1, 2 or 4-loop configuration.

Features

  • LPCB & BOSEC 3rd party approved to latest:
    • EN54-2 1997, A1: 2006
    • EN54-4 1997, A1: 2002 & A2: 2006
  • VdS, BOSEC, CNBOP
  • Choice of 1, 2 & 4-loop panel options
  • Large multi functional touch screen
  • Spur tolerant soft addressing
  • Short circuit isolators incorporated into each loop device
  • Up to 200 addresses per loop
  • Multiple panels are fully networked & monitored
  • Optional – printer integration



INTELLIGENT SINGLE & 2-LOOP FIRE ALARM CONTROL PANEL

Features & Benefits

  • Listed to LPCB standard
  • 2 Loop capacity-477 Addressable Point
  • 8×18 Graphical LCD Display
  • 30 Zone indication including manual intervention & control
  • 3 programmable alarm output
  • Positive Alarm Signal (PAS) Pre-alarm
  • Maintenance report of dirty detector
  • History log 999-events capacity in non-volatile memory
  • Test Facility-Silent Mode
  • Device Start/Stop Mode
  • Device Enable/Disable
  • RS485 Repeater Output (Max. 10)
  • Advanced user friendly programming software including ‘Fuzzy Logic’
  • Optional RS 232 Colour Graphics Software, Printer & Pager Interface
  • Optional RS485 Network Card
  • Optional – printer integration

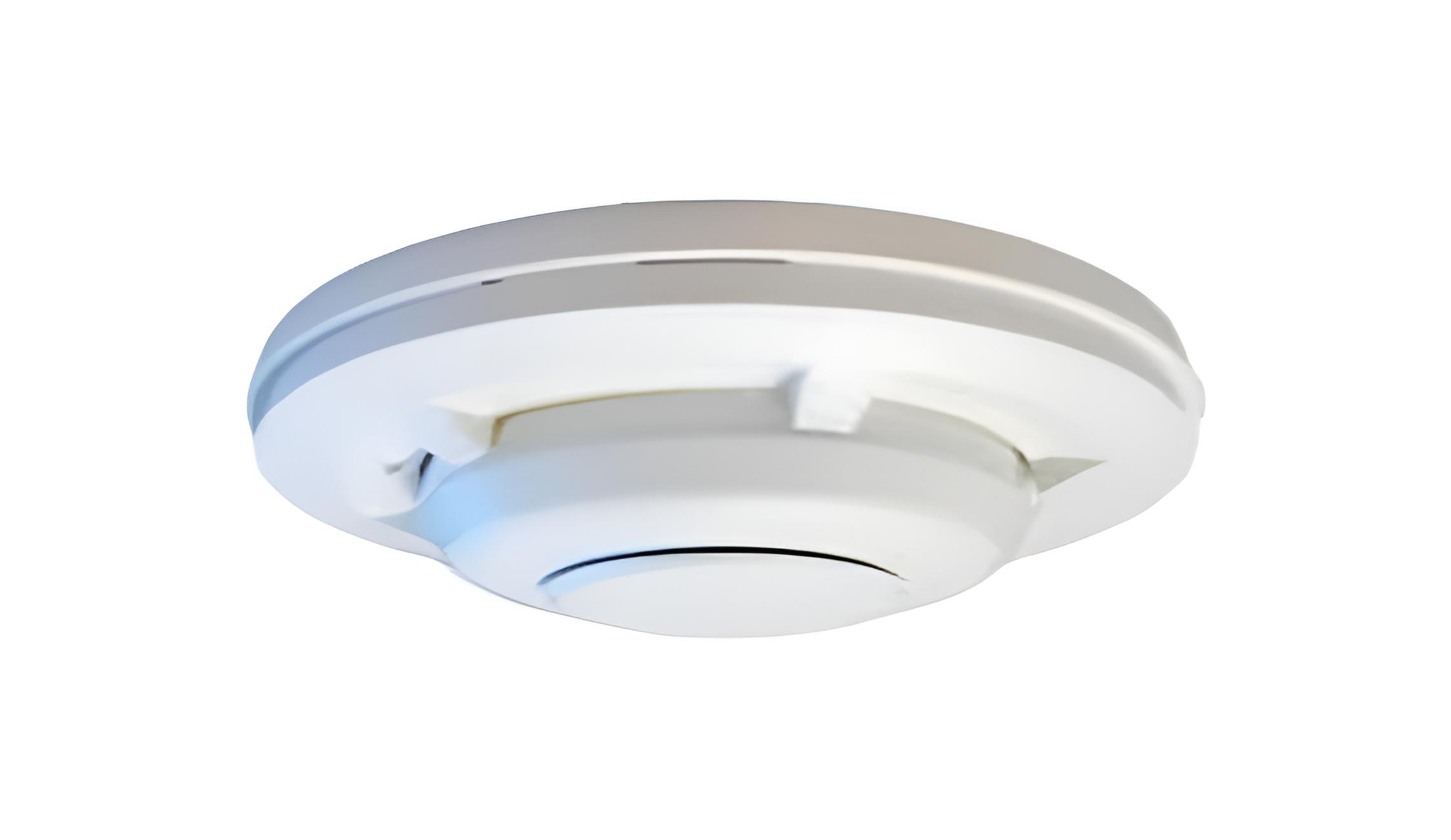

Analogue Sensors

A comprehensive range of analogue sensors are available to operate with the analogue addressable panel range with the following:-

Features

  • Built-in short circuit isolators
  • Stylish low profile design
  • 360º viewable LED design
  • Removable detector chamber
  • Drift compensation

Addressable Manual Call Points

Manual call points are available as surface & weatherproof versions & approved to EN54-13. All call points have integral short circuit isolators & have a status LED fitted as standard.

Addressable Sounders

Base sounder

The loop-powered integrated sounder & sensor mounting base. It can be used with any analogue sensor or as a standalone sounder with the optional CASC cover plate.

Wall sounder

The range of loop-powered addressable wall sounders offers a highly efficient, low current sounder option. Sounder volume & tone are set at the analogue panel avoiding the need to access each sounder individually to alter settings.

For Technical Specifications, write to us
